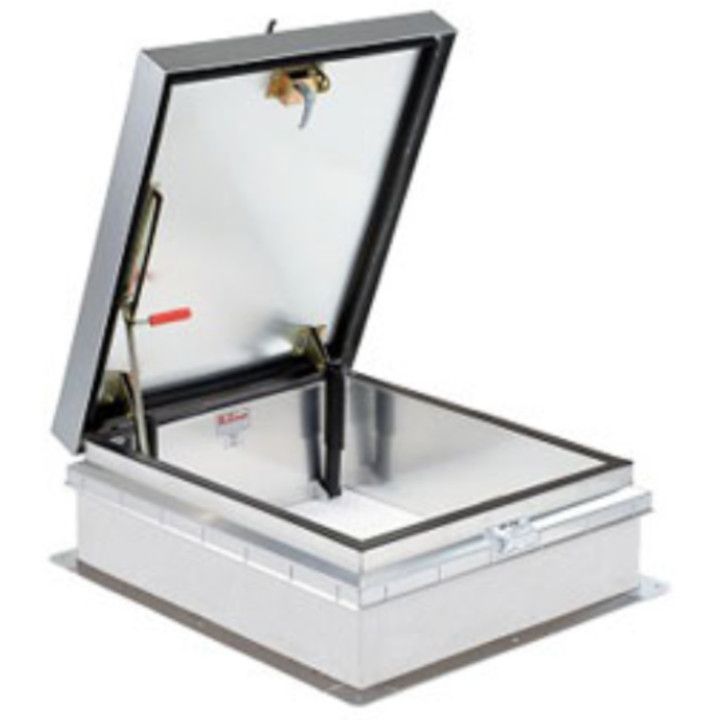

Bilco S-50TB Thermally Broken Aluminum Roof Hatch 36"x30"

The Bilco S-50TB thermally "broken" roof hatch features R-20+ insulation and a frame and cover design that minimizes heat transfer between the interior and exterior metal surfaces. The result is a product that resists harmful condensation and provides superior energy efficiency.

For other options, see "Related Products" below.

Bilco S-50TB Thermally Broken Aluminum Roof Hatch 36"x30"

Standard Features and Benefits

  • Thermally broken cover and curb reduces heat transfer between interior and exterior surfaces to resist harmful condensation
  • Ozone-friendly polyisocyanurate insulation (R-20+) provides superior energy efficiency
  • Special EPDM gasketing with enhanced weather and wind resistance
  • Meets LEED standards for recycled content
  • High solar reflective index (SRI)



Guide Specifications

  • Material: Cover and frame are 11 gauge (2.3 mm) aluminum.
  • Curb: 12" (305 mm) in height with integral capflashing, 3" (75 mm) polyisocyanurate insulation (R Value of 20+), fully welded at corners, and 5-1/2" (114 mm) mounting flange with 7/16" holes (11 mm) provided for securing frame to the roof deck.
  • Gasket: Extruded EPDM rubber gasket permanently adhered to cover.
  • Hinges: Heavy-duty pintle hinges with 3/8" (9 mm) Type 316 stainless steel hinge pins.
  • Latch: Slam latch with interior and exterior turn handles and padlock hasps.
  • Lift Assistance: Compression spring operators enclosed in telescopic tubes. Automatic hold-open arm with grip handle release.
  • Finish: Mill finish aluminum
  • Hardware: Engineered composite compression spring tubes and steel compression springs packed in grease. Type 316 stainless steel hinges. All other hardware is zinc plated/chromate sealed.
