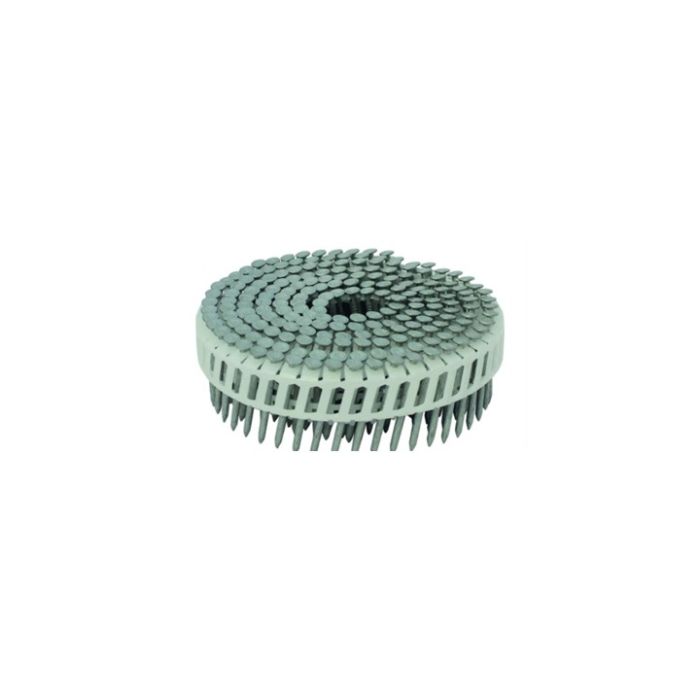

ET&F Sheet Plastic Collated Pins

As low as $145.00

SKU

NCAKNHA

*This is a special order product- subject to return restrictions. Shipping and return policy

ET&F Sheet Plastic Collated Pins

ET&F's STEEL FRAMING PINS series pins are finished with Aericote 1000 coating which provides ten times the corrosion protection of electroplated zinc. When driven, the fastener separates completely from the sheet plastic collation leaving a clean fastening, especially important when face nailing siding. Refer to IAPMO UES ER-335 for design values for horizontal diaphragm and shear wall construction. See ICC Reports ESR-2290 and ESR-1844 for design values for use face nailing James Hardie fiber cement siding. See ICC Report ESR-2273 for design values for use fastening James Hardie fiber cement soffit.

See "Related Products" below for more options.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Description

ET&F Sheet Plastic Collated Pins

PIN CHARACTERISTICS

Collation Type	plastic sheet coil
Head Diameter	0.300" (7.6 mm)
Nail Diameter	.100" 2.54 mm
Length	1 1/2", 2", 2-1/2"
Finish	Aericote® 1000
Material	high carbon steel, heat treated
Nail Head	Full Round Head
Shank Types	knurled
Coil Capacity	250 pins
Tools	E45
Standard / Codes	ESR-1844, ESR-2273, ESR-2290, IAPMO ER-335
