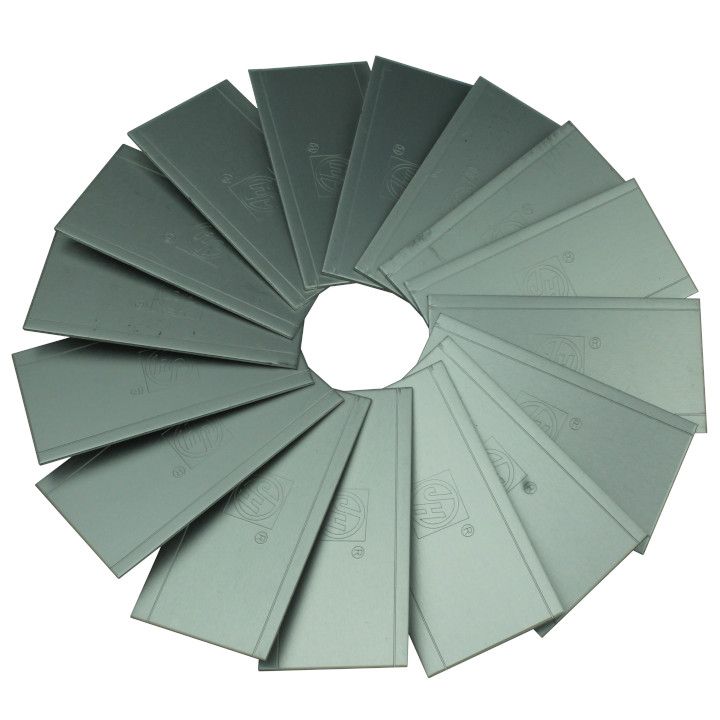

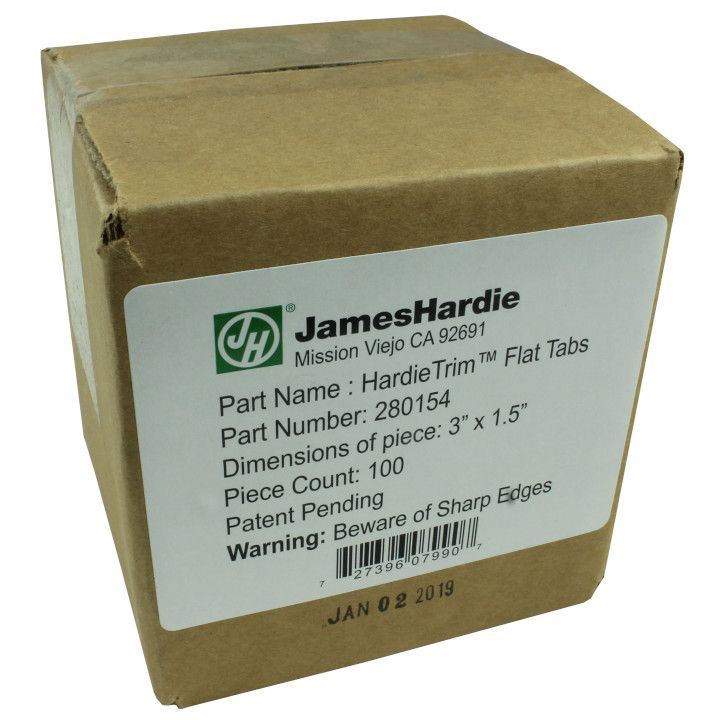

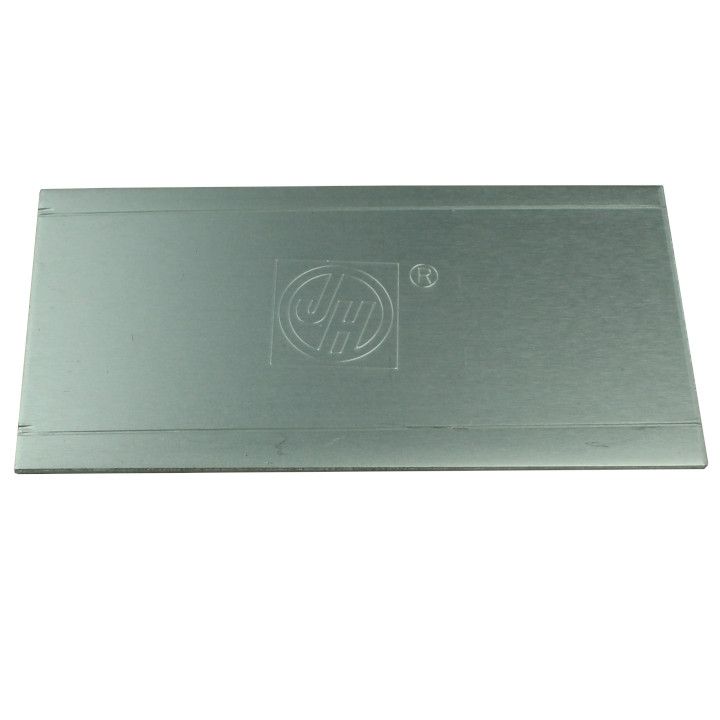

James Hardie Trim Flat Tabs 3"x1.5"

$0.99

In Stock

Only 1866 left

SKU

FCHTFT

James Hardie Trim Flat Tabs 3"x1.5"

Hardie Trim Flat Tabs provide concealed fastening to Hardie Trim Boards. These are used to reduce nail holes and improve the aesthetic of trim applications around windows, doors, and band boards.

This price is per piece.

Also available in corner tabs 5"x5"x1.5" and 8"x8"x1.5".

For other options, see "Related Products" below.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Warranty:

The warranty will be honored only through the manufacturer, James Hardie. For your convenience, product warranty information is attached below; please click the link to view the current warranty policy on the manufacturer's site. If you need further assistance regarding your coverage or have other inquiries, please contact the manufacturer directly.

James Hardie Warranty Information

James Hardie Trim Flat Tabs 3"x1.5"

5/4 HardieTrim boards with Back Grooves are installed with HardieTrim Flat Tabs and HardieTrim Corner Tabs which provide concealed fastening.

Only HardieTrim Flat and Corner Tabs can be used with HardieTrim boards to create a concealed fastening.

Step 1:
Attach HardieTrim Flat Tabs to the back side of the trim using four(4) 18 ga. 1/2" L x 1/4" W narrow crown corrosion resistant staples, equally spaced in one row, positioned no closer than 1/2" from trim edges using a pneumatic staple gun.

Step 2:
For wood frame construction, attach the trim to the building with a minimum of 2, 6d siding nails fastened through the HardieTrim Flat Tabs. ET&F or equivalent fasteners may be used to attach the HardieTrim Flat Tabs to steel frame.
