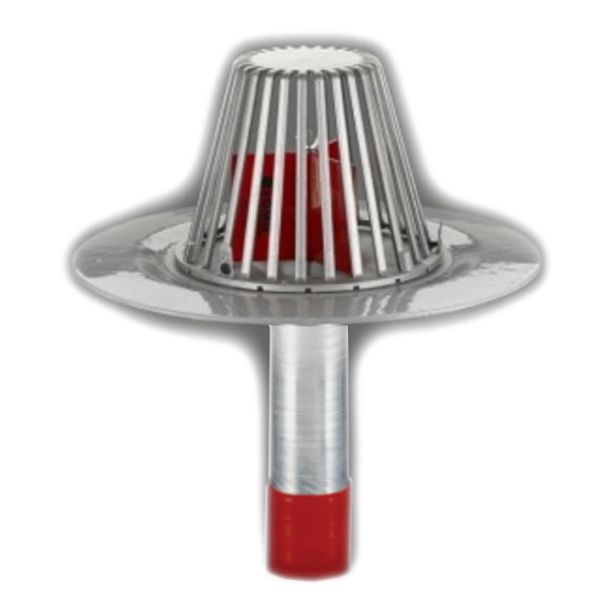

OMG SPTPVC35A SpeedTite PVC Coated Aluminum Drain 3.5"

FEATURES & BENEFITS

Available in 3-, 4-, 5- and 6-inch sizes to accommodate most rooftop drain conditions.
SpeedTite Drains flow like traditional new connection roof drains. The flow performances help to get water - and dead load weight - off of the roof faster.
The Vortex Breaker disrupts the slow draining effect of a vortex, providing a smoother more consistent flow rate and helping to eliminate "chugging" that can cause damage to plumbing systems.
All OMG SpeedTite Drains have been certified by QAI Laboratories to conform with ASME 112.6.4 and CSA-B79-08.

TECHNICAL DATA

The following is accurate for all SpeedTite Drains:

Drain Body: 11 gauge (.125-in.) spun aluminum
Seal: OMG SpeedTite mechanical seal
Flange: 17-in. diameter with sump area
Strainer Dome: Cast aluminum
Stem: 10-in. length
Clamp Ring: Cast aluminum (not in TPO- and PVC-coated models)

PRODUCT USE

Designed to fit into existing drain leaders in re-roofing applications. Installed from the roof's surface.

10-in. long drain stem accommodates most existing field conditions and can be field cut if needed (down to 2.5-in. minimum). Custom lengths also available.

PERFORMANCE DATA

Water Head Level	3-in. SpeedTite	4-in SpeedTite
4-in.	267 gpm	288 gpm
5-in.	346 gpm	469 gpm
6-in.	347 gpm	560 gpm
Measured in Volumetric Flow Rate (gallons per minute). *Testing was performed by PRI Construction Materials Technologies, LLC of Tampa, FL as described in ASPE/IAPMO/ANSI Z1034-2015 Test Method for Evaluating Roof Drain Performance and conducted in accordance with Section 4.1 "Vertical-Pipe Roof-Drain Test." Contact OMG Roofing Products for a copy of the test results.
