SFS Type A 1545869 Pancake Clip to Wood Screw 1" 250pc
$12.95
In Stock
Only 38 left
SKU
SCP1

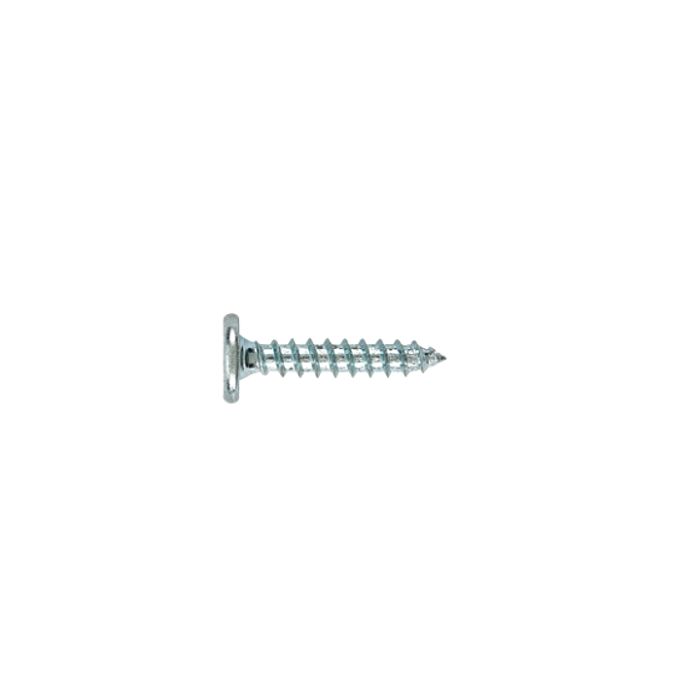

SFS Type A 1545869 Pancake Clip to Wood Screw 1" 250pc
This fastener is designed for the attachment of standing seam panel clips to wood substrates. The pancake head low profile fits under most panel profiles. The type A drill point allows for fast installation while the #2 square drive provides driving stability.
Quantity= Box of 250 pieces
SFS Type A 1545869 Pancake Clip to Wood Screw 1" 250pc
Guidance:
- Install fasteners with 0-2500 rpm screw gun equipped with depth sensing noise piece.
- Special care needs to be taken when installing into wood substrates less than 1” in thickness. Stripping or partially stripping fastener out during installation comprises the clamp load and can affect the performance of the fastener.
- Use of impact guns or hammer drills is not recommended.
Specifications:
- Fastener Length= 1"
- Zinc Plated
- Application= Type A Clip to Wood Screw
- Head Style= Pancake
- Drive Socket= #2 square
- Product Type= Clip Screw
- Diameter= #10
- Diameter (mm)= 4.85 mm
- Drill Point= Type A
- Material= Carbon Steel
- Thread Major Dia= 4.85 mm 0.191"
- Thread Minor Dia= 3.3mm 0.130"
- Threads Per Inch= 12
