Super Anchor 2815 Retro-Fit Anchor with Dacromet D-rings Butyl Flashing and Fasteners
*This is a special order product- subject to return restrictions. Shipping and return policy
Super Anchor 2815 Retro-Fit Anchor with Dacromet D-rings Butyl Flashing and Fasteners

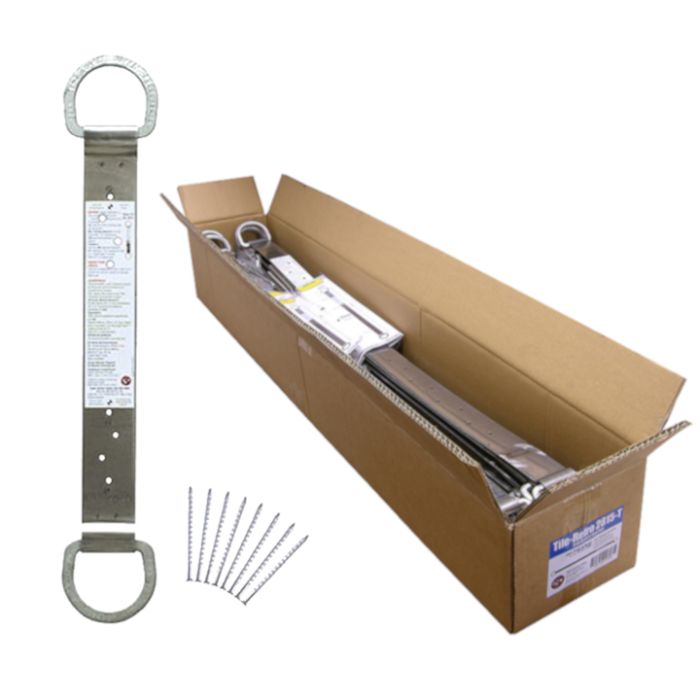

The anchor can be installed as a retro/reroof application or in new construction on low- and high-profile tile and slate roofing material. This is a double D-ring anchor that measures 40" in between the D-rings which allows them be exposed just under the last course of tile. The unique design does not require a conventional flashing system because the anchor does not penetrate the sheeting. It installs with 8 spiral shank stainless steel nails and includes a butyl flashing strip to provide a water-resistant installation. This low-profile strap anchor is aesthetically pleasing and can also be painted to match the roof color.
See "Related Products" for options other than this order, or use "Search" for a wider range of possibilities.
Â
Technical Specifications | |
---|---|
Device | 2 D-ring Permanent Roof Anchor |
Fall Protection Rating | Fall Arrest and Fall Restraint |
Structure Attachment – Wood | Wood Framed Structure |
Structure Attachment – Steel | 24 gauge minimum metal decking with SAS engineering |
Service Load Angle 0-30 Degrees | Fall Arrest |
Service Load Angle 30+ Degrees | Fall Restraint |
Minimum Breaking | 5,000 pounds |
Minimum Tensile | 5,000 pounds |
Material – Strapping | 20 gauge 430 Stainless Steel |
Material – D-rings | Stamped Dacromet or yellow zinc plated steel |
Flashing | Butyl flashing for waterproofing 2 @ 4″ |
Maximum User Weight | 340 pounds including tools and equipment |
Hardware | 3-1/4″ Stainless steel nails |
OSHA Standard | 1926:502 and 1910.66 |
ANSI Standard | Z359.1-07 and A10.32-2012 |
Canadian 3rd Party | Certified by L’Ordre des Ingenierus du Quebec |
Super Anchor 2815 Retro-Fit Anchor with Dacromet D-rings Butyl Flashing and Fasteners
- Designed Specifically for High and Low Profile Tile Roofs
- Includes a Butyl Strip for a Waterproof Seal
- Low Profile Design Blends Into Roofing
- Complies with all OSHA and ANSI Standards
- Includes Stainless Steel Fasteners
