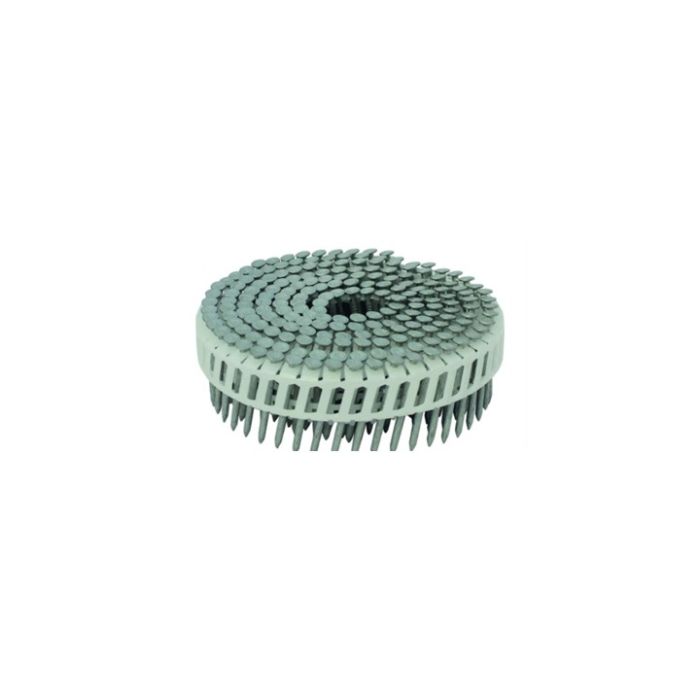

ET&F AKN1000200HA Sheet Plastic Collated Pins 2" 2000ct
ET&F's STEEL FRAMING PINS AKN-100-XXXXHA series pins are designed specially for the ROCKFAST E45 tool to attach plywood, oriented strand board (OSB) and fiber cement siding and soffit to cold formed steel from 97 mil (12 GA.) to 27 mil (22 GA.). These pins are finished with Aericote 1000 coating which provides ten times the corrosion protection of electroplated zinc. When driven, the fastener separates completely from the sheet plastic collation leaving a clean fastening, especially important when face nailing siding. Refer to IAPMO UES ER-335 for design values for horizontal diaphragm and shear wall construction. See ICC Reports ESR-2290 and ESR-1844 for design values for use face nailing James Hardie fiber cement siding. See ICC Report ESR-2273 for design values for use fastening James Hardie fiber cement soffit.
See "Related Products" below for more options.
ET&F AKN1000200HA Sheet Plastic Collated Pins 2" 2000ct
PIN CHARACTERISTICS
| Collation Type | plastic sheet coil |
|---|---|
| Head Diameter | 0.300" (7.6 mm) |
| Nail Diameter |
.100"
2.54 mm
|
| Length |
1 1/2", 2", 2-1/2"
|
| Finish | Aericote® 1000 |
| Material | high carbon steel, heat treated |
| Nail Head | Full Round Head |
| Shank Types | knurled |
| Coil Capacity | 250 pins |
| Tools | E45 |
| Standard / Codes | ESR-1844, ESR-2273, ESR-2290, IAPMO ER-335 |
PACKING INFORMATION
| Quantity per Case | 2,000 (AKN-100-0250HA 2,000) |
|---|
| Stock Info | Special Order |
|---|---|
| In Stock Message | In Stock |
| Enable Dropship | No |
