Guidance:

• Install fasteners with 0-2500 rpm screw gun equipped with depth sensing noise piece.
• Special care needs to be taken when installing wood substrate less than 1” in thickness.
• Stripping or partially stripping the fastener out during installation can compromise the clamp load and can affect the performance of the fastener.
• Use of guns or hammer drills is not recommended.

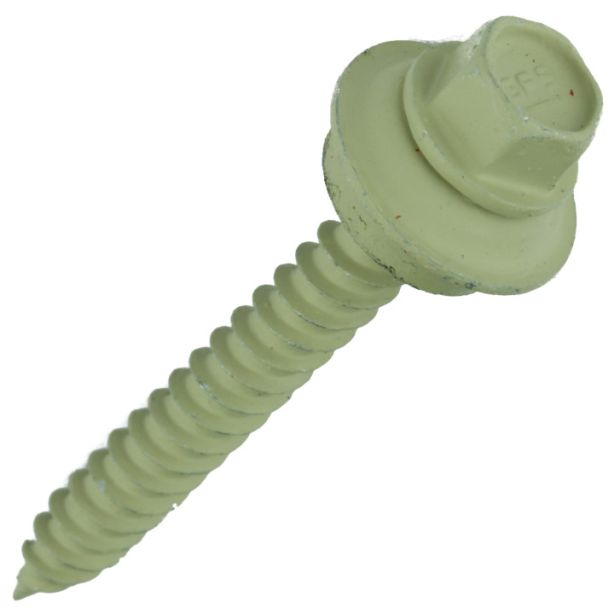

Specifications:

• Color= Surrey Beige
• Fastener Length=1.5"
• Application= Metal panel to wood
• VistaCoat premium coating system
• Drive Socket= 1/4" Hex
• Product Type= Wood screw
• Diameter= #9
• Diameter= 4.52 mm
• Drill Capacity Max (Inches)= 24 ga.
• Drill Capacity Range (mm)= 0.6 mm
• Drill Point= Sharp point
• Head Diameter= 1/4" Hex
• Head Style= Hex Washer head
• Material= Carbon steel
• Thread Major Dia= 0.180"
• Thread Major Dia= 4.52 mm
• Thread Minor Dia= 0.130"
• Thread Minor Dia= 3.3 mm
• Threads Per Inch= 15
• Washer Type= 1/2" Galvanized control seal


Warranty Type: VistaCoat limited warranty

The warranty will be honored only through the manufacturer, SFS Group. For your convenience, product warranty information is attached below; please click the link below to view the current warranty policy on the manufacturer's site. If you need further assistance regarding your coverage or have other inquiries, please contact the manufacturer directly.

Link  -  SFS Warranty Information
Email  -  [email protected]
