Guidance:

• Install fasteners with 0-2500 rpm screw gun equipped with depth sensing noise piece.
• Special care needs to be taken when installing wood substrate less than 1” in thickness.
• Stripping or partially stripping the fastener out during installation can compromise the clamp load and can affect the performance of the fastener.
• Use of guns or hammer drills is not recommended.

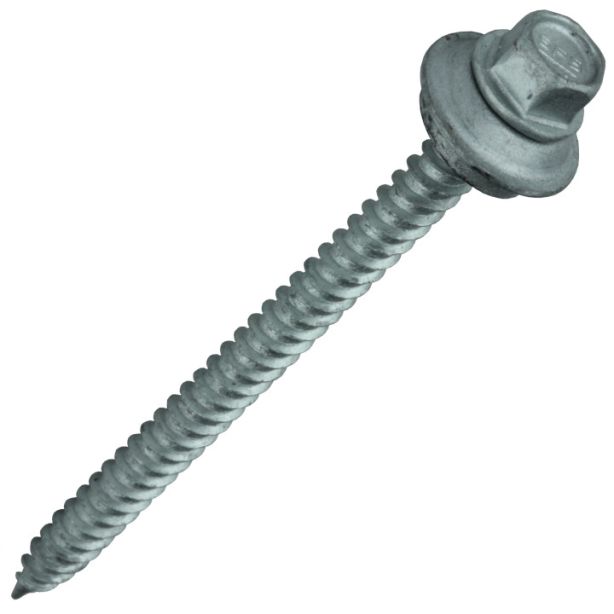

Specifications:

• Color= Plain
• Fastener Length=2.5"
• Application= Metal panel to wood
• VistaCoat premium coating system
• Drive Socket= 1/4" Hex
• Product Type= Wood screw
• Diameter= #9
• Diameter= 4.52 mm
• Drill Capacity Max (Inches)= 24 ga.
• Drill Capacity Range (mm)= 0.6 mm
• Drill Point= Sharp point
• Head Diameter= 1/4" Hex
• Head Style= Hex Washer head
• Material= Carbon steel
• Thread Major Dia= 0.180"
• Thread Major Dia= 4.52 mm
• Thread Minor Dia= 0.130"
• Thread Minor Dia= 3.3 mm
• Threads Per Inch= 15
• Washer Type= 1/2" Galvanized control seal


Warranty Type: VistaCoat limited warranty
