• Size= 8’x65.6’
• Thickness= 0.86mm
• Coverage= 524sqft
• Thermal resistance= R0.63
• ASTM E96= 0.452 perms (25.8 ng/Pa.s.m²)

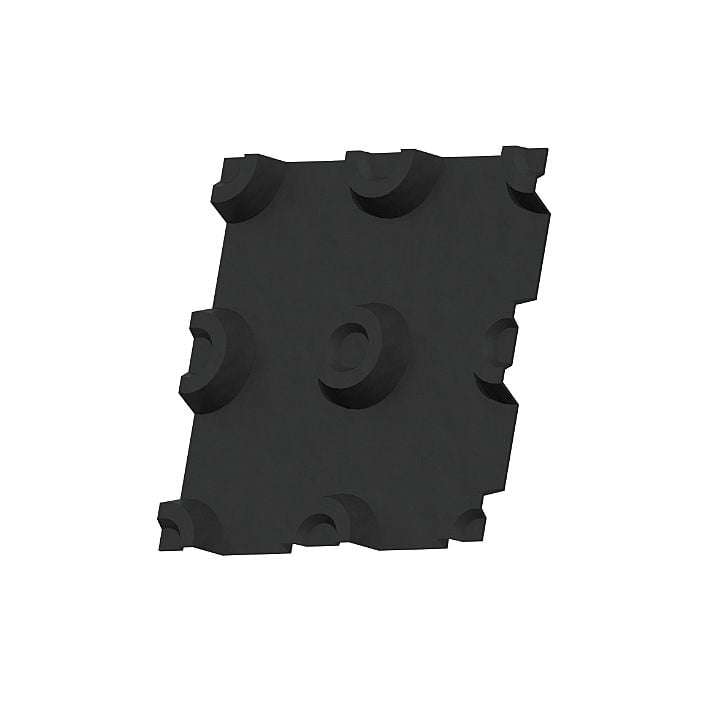

• Air Volume/dimple side= 4.0 l/m² (1 gal/vg²)
• UV Stabilization= Minimum 2% carbon black content
• Recycled plastic content= + 85%
• Overall thickness= 6.11 mm (240 mils)
• Compressive strength= 278 kPa (5 806 psf)
• Material= High-density polyethylene (HDPE)
• Can be installed in any weather condition
• No additional protection required
• Can easily bridge ¼” cracks
• Ideal for= Plywood, Concrete, PWF, Masonry blocks

Manufacturer recommendations:

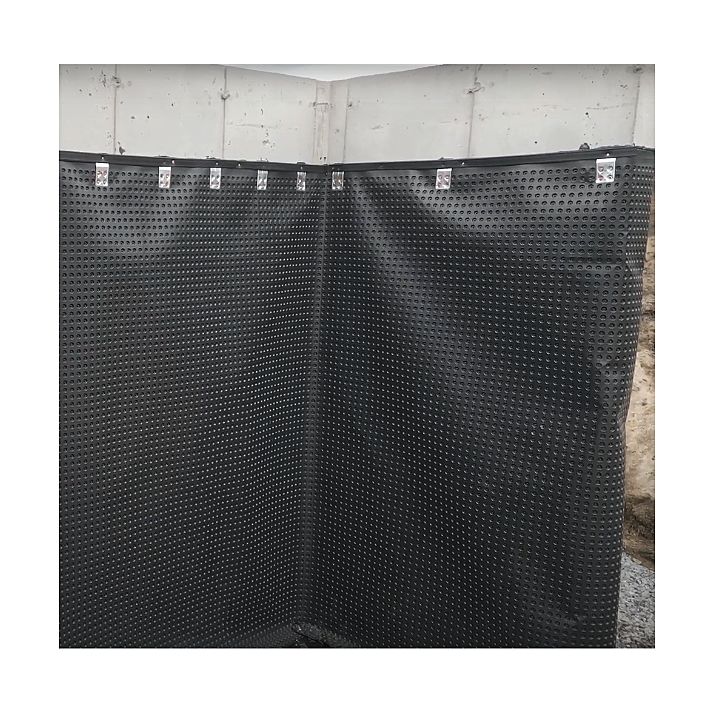

• Plan one roll for every 62ft (19m) of foundation (which allows for overlap of rolls).
• The membrane should be overlapped horizontally by 6” (15 cm) for a deeper foundation wall.

      (Caulking)

• At least two tubes are required per roll.  Chemlink M1 recommended
• For concrete or wood foundations, use butyl rubber or asphalt-based roofing cement.
• For insulated concrete forms (ICF), use foam panel adhesive.
• Do not use silicone, latex, or polyurethane.

     (Fastening) - when fastening the drainage board:

• For concrete use 1 ¼” (32 mm) concrete nails.
• For insulated concrete forms (ICF) and treated wood foundations, use 1 ⅝” (41 mm) corrosion-resistant deck screws. Additionally, the caulking must be compatible with the foam insulation of the (ICF).
• If you are installing drainage boards over spray polyurethane foam, use concrete nails long enough to penetrate at least 1" (2.5 cm) into the concrete.
